Specifications
Strutt ev¹c
General

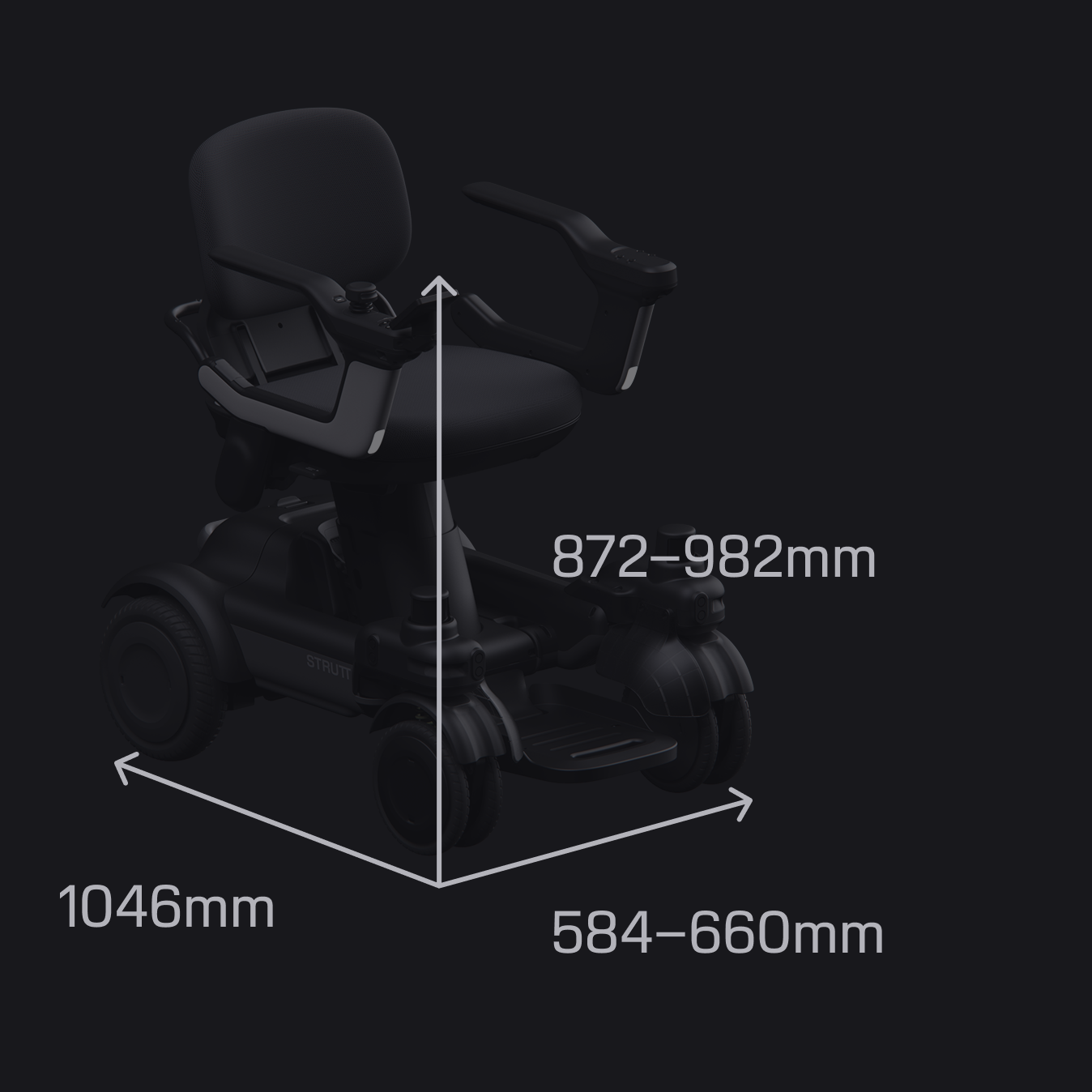

Device Dimension
(L x W x H)¹
Metric: 1046 x (584–660) × (872–982) mm
Imperial: 41.2 × 23–26 × 34.3–38.7 in
Imperial: 41.2 × 23–26 × 34.3–38.7 in
Metric: 1046 x (584–660) × (872–982) mmImperial: 41.2 × 23–26 × 34.3–38.7 in
Weight (Excluding Battery)
63.9 kg (141 lbs)
Modules
5 (Includes Battery)
Heaviest Module Weight
≈ 19.8 kg (≈ 43.7 lb)
Working Temperature
-10 to 45 °C (14 to 113 °F)
Waterproof Rating2
IPX5
Altitude Range
0–5000 m (≈ 0–16404 ft)
Seating Dimensions
& Capacity

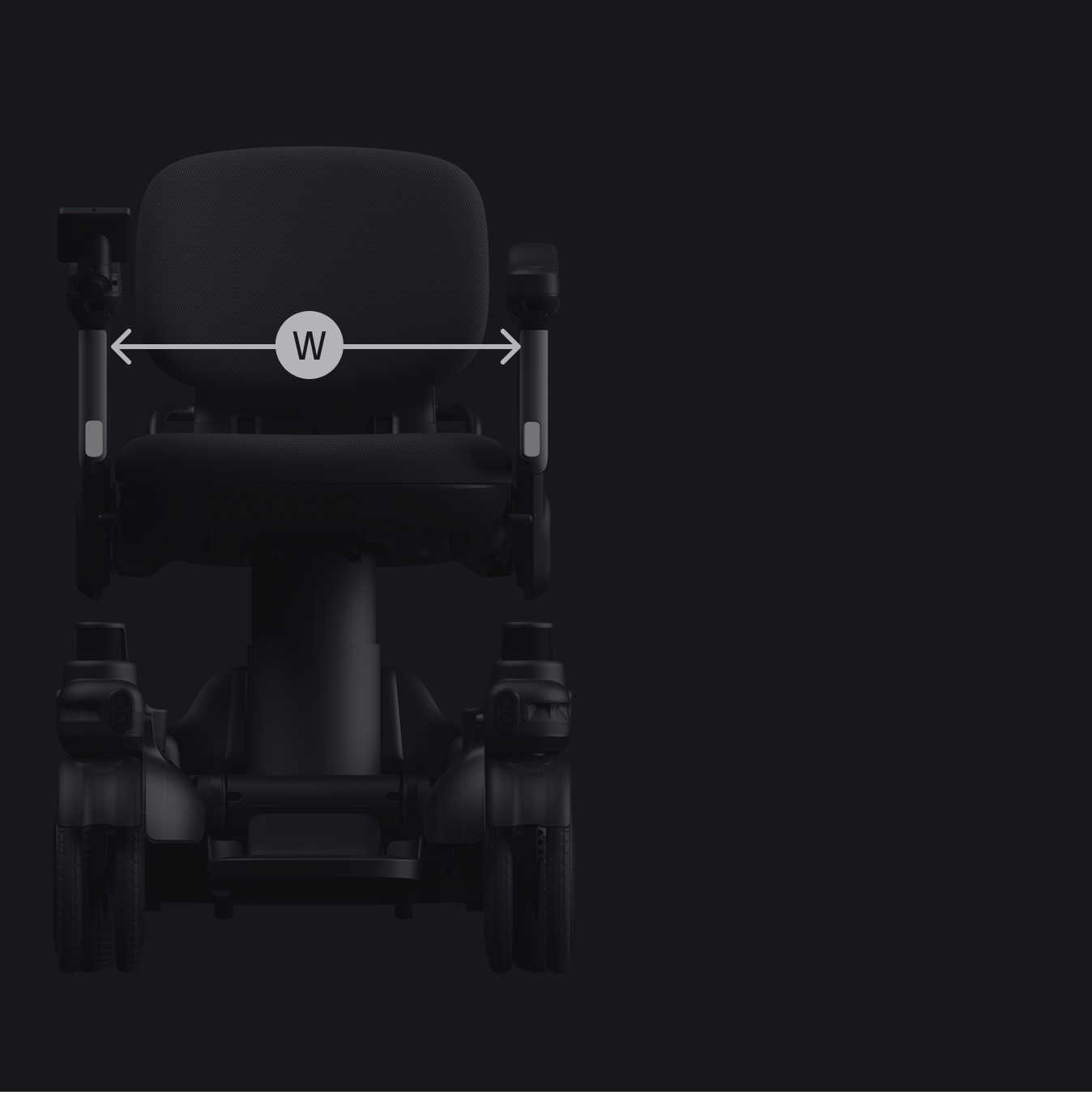

Seat Width
Level 1: 442 mm (17.4 in)
Level 2: 480 mm (18.9 in)
Level 3: 518 mm (20.4 in)
Level 2: 480 mm (18.9 in)
Level 3: 518 mm (20.4 in)

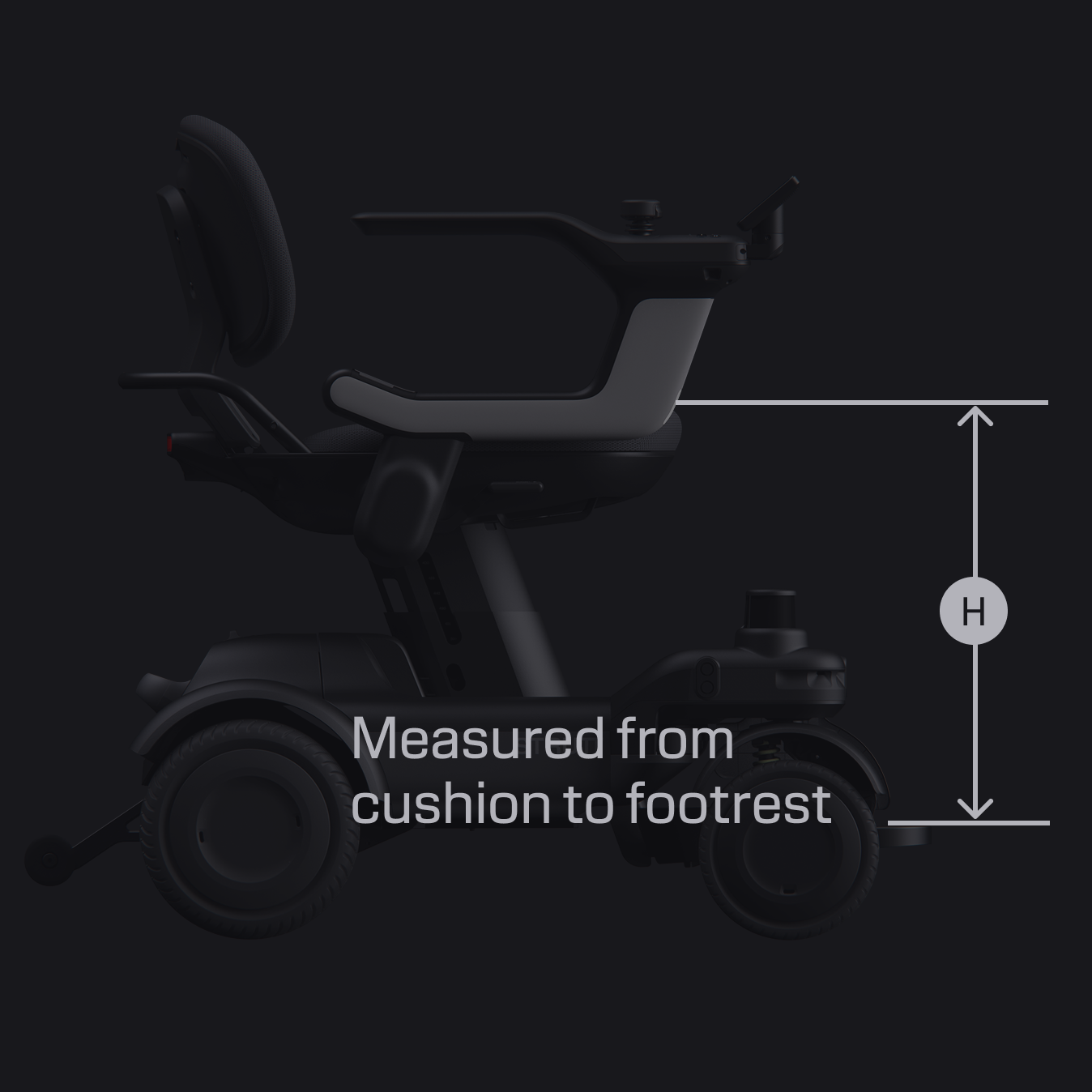

Seat Height
Seat Height
Level 1: 400 mm (5.7 in)
Level 2: 420 mm (16.5 in)
Level 3: 440 mm (17.3 in)
Level 4: 460 mm (18.1 in)
Level 5: 480 mm (18.9 in)
Level 6: 500 mm (19.7 in)
Level 2: 420 mm (16.5 in)
Level 3: 440 mm (17.3 in)
Level 4: 460 mm (18.1 in)
Level 5: 480 mm (18.9 in)
Level 6: 500 mm (19.7 in)
* For reference only
User Height *
Level 1: 150-158cm (4.9-5.2ft)
Level 2: 159-166cm (5.2-5.5ft)
Level 3: 167-174cm (5.5-5.7ft)
Level 4: 175-182cm (5.7-6.0ft)
Level 5: 183-190cm (6.0-6.2ft)
Level 6: >190 cm (>6.2ft)
Level 2: 159-166cm (5.2-5.5ft)
Level 3: 167-174cm (5.5-5.7ft)
Level 4: 175-182cm (5.7-6.0ft)
Level 5: 183-190cm (6.0-6.2ft)
Level 6: >190 cm (>6.2ft)
150-158cm (4.9-5.2ft)
159-166cm (5.2-5.5ft)
167-174cm (5.5-5.7ft)
175-182cm (5.7-6.0ft)
183-190cm (6.0-6.2ft)
>190 cm (>6.2ft)
159-166cm (5.2-5.5ft)
167-174cm (5.5-5.7ft)
175-182cm (5.7-6.0ft)
183-190cm (6.0-6.2ft)
>190 cm (>6.2ft)

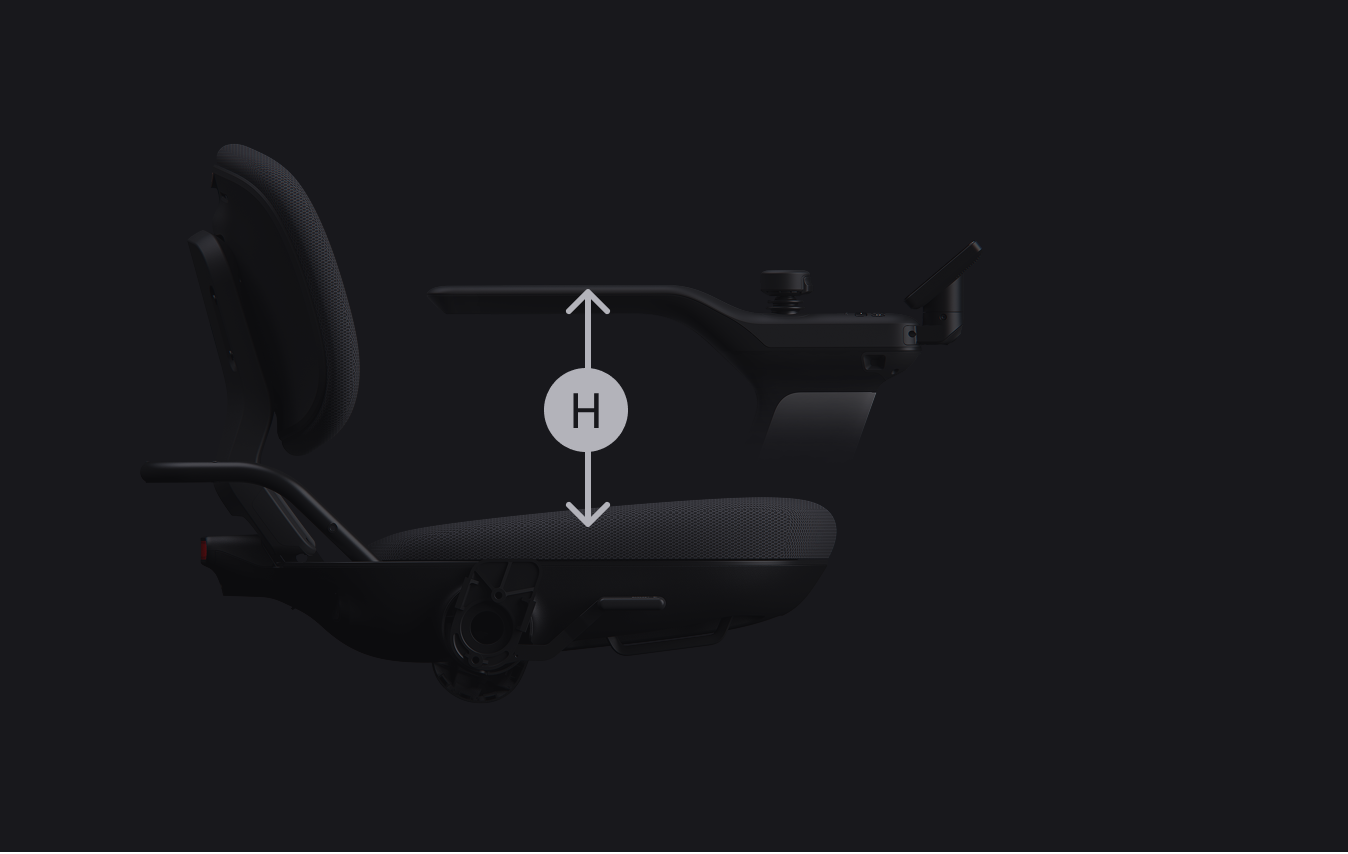

Armrest Height
Level 1: 220 mm (8.7 in)
Level 2: 240 mm (9.4 in)
Level 3: 260 mm (10.2 in)
Level 2: 240 mm (9.4 in)
Level 3: 260 mm (10.2 in)
Seat Angle
5°
Seat Cushion Width
≈ 462 mm (≈ 18.2 in)
Seat Cushion Depth
≈ 460 mm (≈ 18.1 in)
Armrest Rotation
Yes
Backrest Angle
Level 1: 13°
Level 2: 16°
Level 3: 19°
Level 2: 16°
Level 3: 19°
Backrest Height
Level 1: 350 mm (13.8 in)
Level 2: 375 mm (14.8 in)
Level 3: 400 mm (15.7 in)
Level 4: 425 mm (16.7 in)
Level 2: 375 mm (14.8 in)
Level 3: 400 mm (15.7 in)
Level 4: 425 mm (16.7 in)

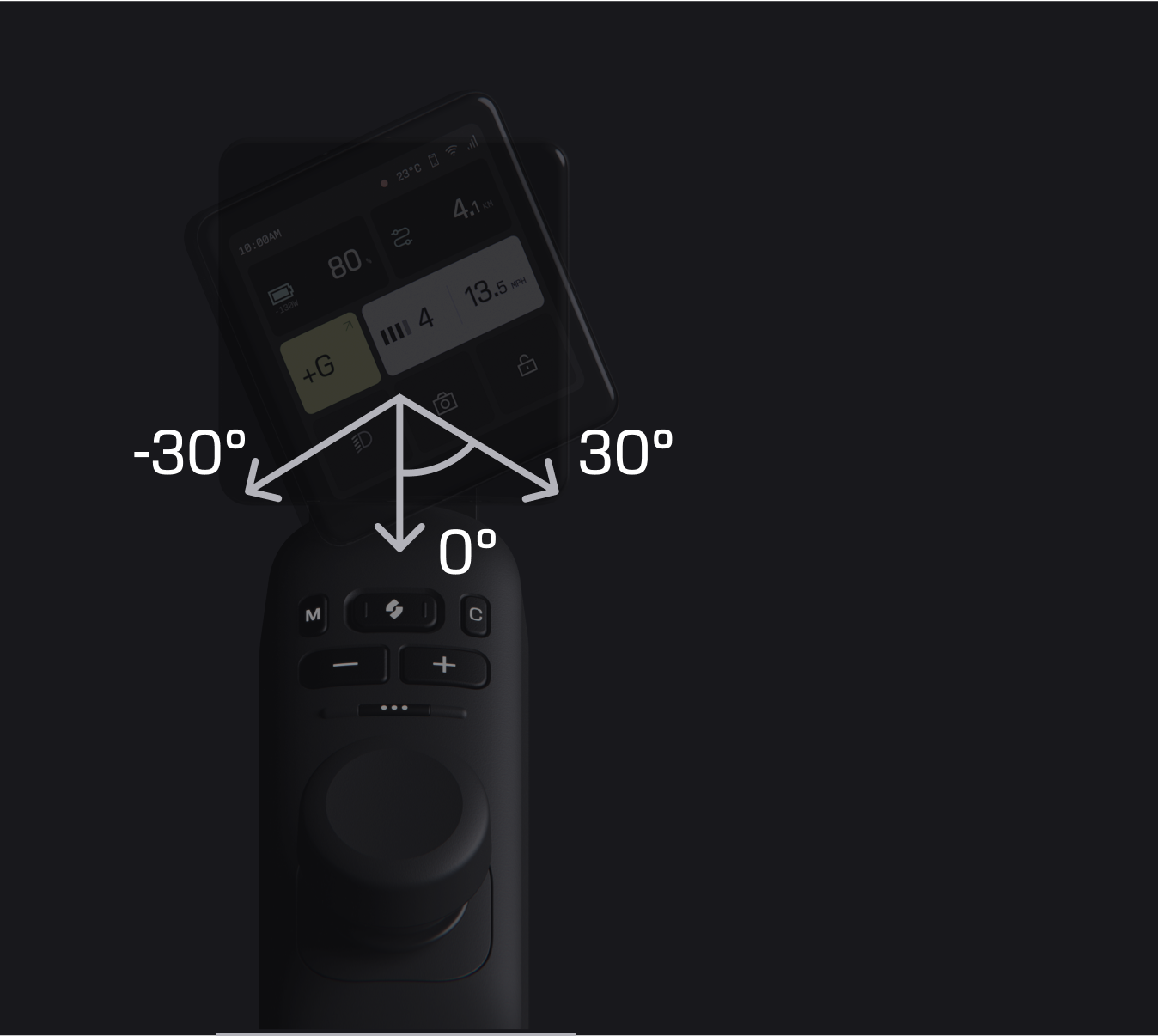

Screen Angle
Level 1: -30°
Level 2: 0°
Level 3: 30°
Level 2: 0°
Level 3: 30°
Screen module with the joystick can be switch to the other side of the armrest
Weight Capacity
160 kg (350 lbs)
Driving Performance
Range3
32 km (20 miles)
Maximum Speed4
Level 1: 1.5kph / 0.9 mph
Level 2: 3kph / 1.9 mph
Level 3: 4.5kph / 2.8 mph
Level 4: 6kph / 3.7 mph
Level S: 12.9 kph / 8 mph
*Level S is not available in Singapore or Japan due to local regulatory requirements.
Availability in other regions may be adjusted where necessary to comply with applicable laws and regulations.
Availability in other regions may be adjusted where necessary to comply with applicable laws and regulations.
Ground Clearance
80 mm (3.1 in)
Obstacle Clearance
50 mm (2 in)

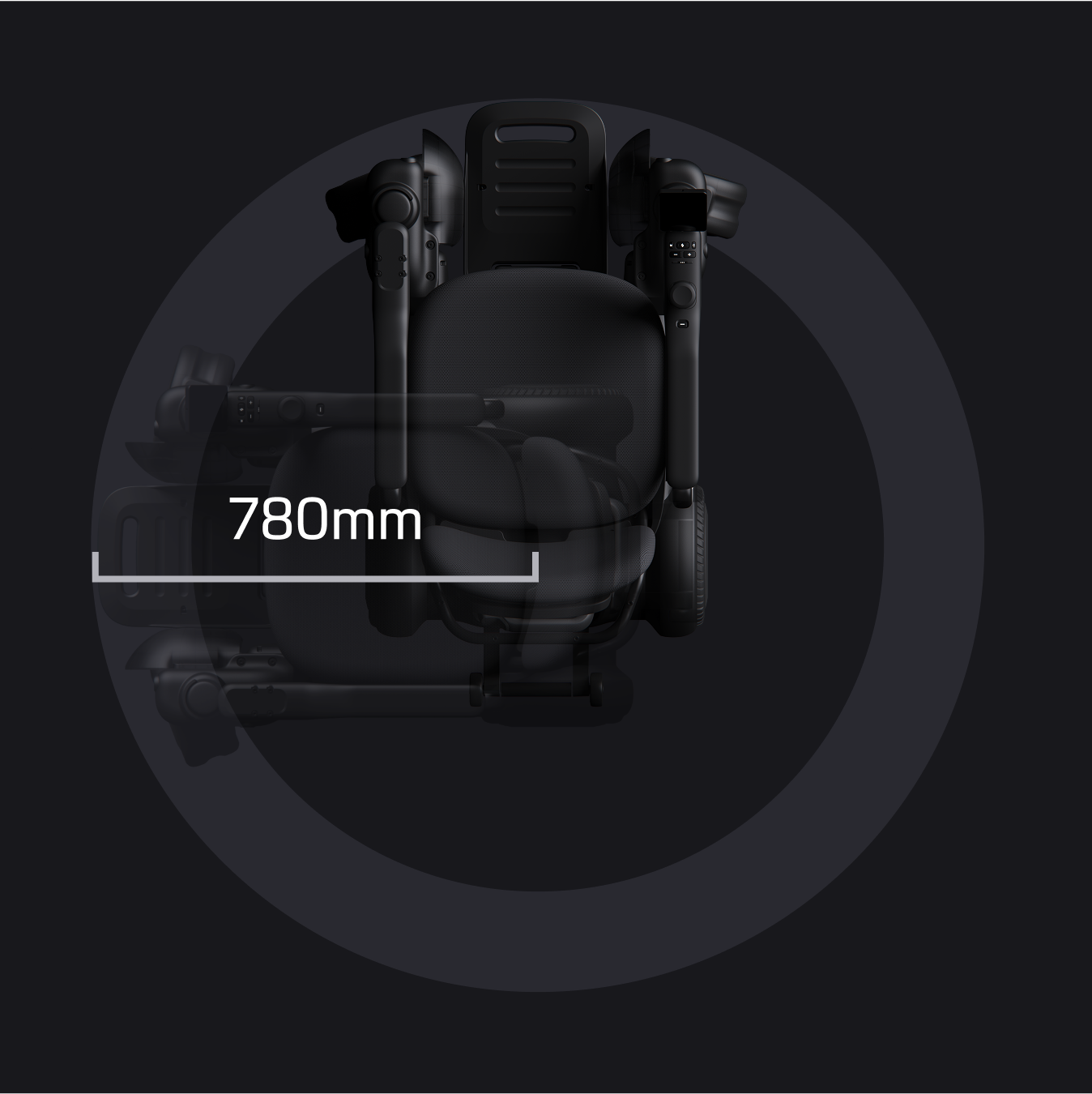

Turning Radius
780 mm (30.7 in)
Maximum Climbing Slope5
Approximately 13°
Front wheel diameter
Solid tire ≈ 203 mm (≈ 8 in)
Rear wheel diameter
Solid tire ≈ 254 mm (≈ 10 in)
Suspension
4-wheel independent suspension
Sensors
Intelligent Sensor
Lidar sensor: x2
ToF sensor: x10
Ultrasonic sensor: x6
Camera: x2
ToF sensor: x10
Ultrasonic sensor: x6
Camera: x2
Other Specifications
Display
4-inch LCD display, Brightness: 1000 nits
Backup Camera
Yes
Brightness Adjustable Headlight
Yes
Freewheel Mode
Yes
USB Type-C Output
PD protocol (5V-3A, 9V-3A,
12V-2.5A)
12V-2.5A)
OTA
Yes
Battery & Charger
Battery
Dimension (L x W x H)
≈ 204 × 108 × 310 mm (≈ 8 × 4.3 × 12.2 in)
Weight
6±0.5 kg (13.23±1.10 lbs)
Type
Lithium iron phosphate
Nominal Voltage
32V
Typical Capacity/Typical Energy
20Ah/640Wh
Limit Charging Voltage
36V
Charging Time
0~80% capacity:
≈ 2 hours
0~100% capacity:
≈ 4 hours
≈ 2 hours
0~100% capacity:
≈ 4 hours
Waterproof Rating
IPX6
Working Temperature
-10 to 45 °C (14 to 113 °F)
Charging Temperature
2 to 45 °C (36 to 113 °F)
Fast Charger
Dimension (L x W x H)
199 × 88.5 × 47 mm (≈ 7.83 × 3.48 × 1.85 in)
Weight
≈ 1.2 kg (≈ 2.65 lbs)
Input
100–240 V (AC), 50–60 Hz,
5.0A Max
5.0A Max
Output
36.0V–9.0A (DC)
Output Power
324W (Max)
Waterproof Rating
IPX1
Charging Temperature
0 to 45 °C (32 to 113 °F)
Altitude Range
0–5000 m (≈ 0–16404 ft)
In the Box
In the Box
Box-1
Rear Chassis*1
Long-range Battery*1
Startup Kit*1
Quick Start Guide*1
Disclaimer Card*1
Warranty Card*1
Logo Sticker*1
Long-range Battery*1
Startup Kit*1
Quick Start Guide*1
Disclaimer Card*1
Warranty Card*1
Logo Sticker*1
Box-2
Main Support*1
Front Chassis*1
LiDAR Protection Cover*2
Front Chassis*1
LiDAR Protection Cover*2
Box-3
Seat*1
Screen Moduel*1+Screen Protection Cover*1
Toolkit*1
M3 Screw*4
ST4 Screw*4
USB-C Locking Clip*2
Seat Cushion*1
Backrest Cushion*1
Fast Charger*1
Charging Cable*1
Universal Mount*1
Joystick Extension*1
Front Camera Cover*1
Rear Camera Cover*1
Cleaning Wipe*2
Seat Storage*1
Screen Moduel*1+Screen Protection Cover*1
Toolkit*1
M3 Screw*4
ST4 Screw*4
USB-C Locking Clip*2
Seat Cushion*1
Backrest Cushion*1
Fast Charger*1
Charging Cable*1
Universal Mount*1
Joystick Extension*1
Front Camera Cover*1
Rear Camera Cover*1
Cleaning Wipe*2
Seat Storage*1
Notes:
* Product functions, configurations, specifications, and performance may vary to comply with local laws and regulations, as well as be continuously updated due to product iteration, software updates, or technological improvements.
1. Height is measured with standard backrest and may vary depending on seat height and backrest angle. Width may vary depending on seat width.
2. The IPX5 waterproof rating is measured under controlled laboratory conditions. Waterproof performance is not permanent and may degrade due to daily wear or impact. Do not charge the vehicle in wet or rainy environments. Damage caused by liquid ingress is not covered under warranty.
3. Actual driving range, obstacle clearance capability, and overall performance are influenced by a variety of factors. These include, but are not limited to: product configuration, battery health and age, driving behavior, total payload, terrain, and environmental conditions. Please note that theoretical test data serves as a reference and may not reflect performance in all real-world scenarios.
4. The maximum driving speed of the product is subject to local laws and regulations. Please comply with locally applicable legal limits and permitted speed ranges. When traveling at higher speeds over discontinuous surfaces (including but not limited to speed bumps, ramps, or steps), vehicle stability may be affected by road conditions, obstacle shape, speed, occupant posture, and center of gravity. There is a risk of instability or even rollover. Please maintain safe driving awareness and take responsibility for driving safety.
5. The maximum climbable slope is approximately 13°, based on testing under a normal seated posture, a 160 kg load, and the seat at its highest position on a smooth slope. Additional accessories or changes to the vehicle's center of gravity may affect stability; steep slope operation should be avoided.
